High-voltage (HV) and extra-high-voltage (EHV) infrastructure demands near-zero fault tolerance. Material degradation leads to catastrophic failures. Such failures cause severe grid instability and massive downtime. Modern energy networks require robust insulation to survive intense electrical stresses over decades. Older technologies struggle to meet these escalating grid demands. Infrastructure aging forces utilities to upgrade their primary transmission corridors rapidly.
Consequently, industry standards have largely replaced paper-insulated lead-covered (PILC) cables and standard thermoplastics. They now mandate advanced thermosets. We will explore why Crosslinked Polyethylene dominates modern HV networks. You will discover its technical advantages against severe environmental stressors.
Project engineers and procurement leaders will learn how to validate material selection effectively. You will also assess implementation risks and learn how to shortlist cable manufacturers based on verifiable performance criteria. This approach ensures your next transmission project achieves long-term operational stability.
Thermal Resilience: XLPE safely sustains 90°C continuous operating temperatures and withstands short-circuit spikes up to 250°C without melting.
Dielectric Efficiency: Offers lower dielectric loss compared to EPR (Ethylene Propylene Rubber), making it the optimal choice for long-haul, high-voltage transmission.
Risk Mitigation: While highly durable, pure XLPE is susceptible to "water treeing" in wet environments; specifying TR-XLPE (Tree-Retardant) or incorporating metallic moisture barriers is critical.
HV networks face extreme compound stresses daily. These include relentless thermal cycling, high electrical fields, and continuous mechanical tension. Standard materials often deform or break down under these simultaneous pressures. The structural solution lies in advanced molecular chemistry.

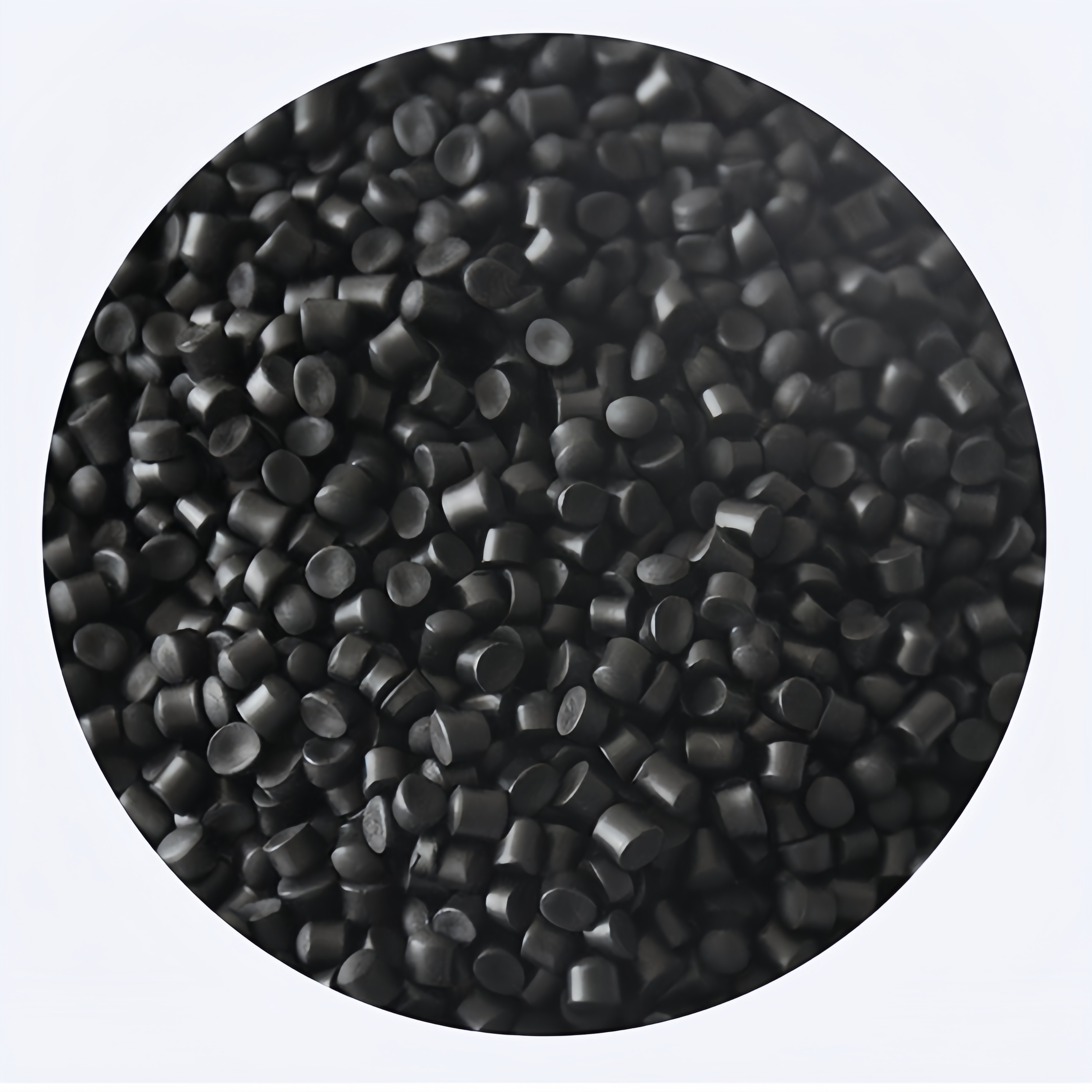

Through a rigorous crosslinking process known as vulcanization, manufacturers transform ordinary polyethylene. They change it from a vulnerable thermoplastic into a highly resilient thermoset material. This chemical reaction creates three-dimensional bonds between polymer chains. It bridges the molecular gaps seamlessly. This bonding prevents the polymer chains from slipping past each other when heated. As a result, the physical shape remains completely stable even during extreme temperature spikes.
To evaluate success in HV environments, insulation must meet strict criteria. We define performance through three primary requirements.
First, it must prevent dielectric breakdown under sustained, massive electrical loads. The insulation wall must contain the electrical field flawlessly. Second, the material must resist thermomechanical deformation during peak power demand. As conductors heat up and expand, the insulation must accommodate this expansion without thinning out. Third, it requires long-term chemical stability. This remains especially critical in harsh subterranean or subsea environments. In these zones, soil acidity and moisture continuously attack the cable jacket. Project managers rely on these baseline metrics to validate every new transmission route.
Standard polyethylene (PE) reaches its thermal limit at roughly 70°C. Above this point, it begins to soften and melt. In contrast, Crosslinked Polyethylene comfortably sustains 90°C continuous operating temperatures. It also withstands extreme short-circuit spikes up to 250°C without losing structural integrity. This thermoset property ensures grid reliability during sudden power surges or momentary faults. Grid operators can push more power through the network safely during peak summer months.
The dielectric strength of this material stands out significantly. It offers remarkably high insulation resistance. Furthermore, it maintains an extremely low dissipation factor. Engineers often refer to this as tan delta. A lower tan delta minimizes transmission losses over long distances. This makes it highly efficient for regional power distribution. Less energy escapes as heat into the surrounding soil. Consequently, utility providers deliver a higher percentage of generated power directly to consumers.
Because of its enhanced thermal limit, the current carrying capacity increases dramatically. These cables safely carry much higher currents than equivalently sized non-crosslinked alternatives. Project engineers can potentially reduce the required cable cross-sections. Smaller cross-sections simplify logistics and reduce overall installation weight. Lighter cables require less heavy machinery to pull through underground conduits. This translates into faster deployment timelines and safer working conditions for installation crews.
Underground and subsea environments punish infrastructure relentlessly. Insulation materials must survive exposure to aggressive soil chemicals, oils, and industrial solvents. Fortunately, crosslinked molecular structures exhibit exceptional chemical inertness. They repel most corrosive elements found in modern industrial zones or heavily polluted urban soils. This resilience minimizes the risk of environmental jacket degradation over the project lifetime.
Safety in enclosed spaces remains another critical engineering concern. Engineers add specific flame-retardant compounds during manufacturing. This insulation then meets stringent zero-halogen (LSZH) standards. Standard plastics release toxic smoke and corrosive gases during fires. LSZH variants mitigate these deadly emissions. They protect personnel and sensitive electronic equipment inside tunnels, mass transit systems, or high-risk infrastructure. Fire containment becomes significantly easier when the cable itself refuses to propagate flames rapidly.
Engineers frequently weigh different insulation types during project planning. Understanding the baseline differences helps clarify material selection. Thermoset options prevent melting and deformation. Conversely, thermoplastic materials soften under heat. We must evaluate these properties systematically to avoid premature network failures.
Let us look at a direct comparison chart to illustrate these differences clearly:
High-Voltage Cable Insulation Comparison | ||||
Material Type | Classification | Max Continuous Temp | Flexibility | Dielectric Loss |
|---|---|---|---|---|
Standard PE | Thermoplastic | 70°C | Moderate | Low |
EPR | Thermoset | 90°C | High | Moderate to High |
XLPE | Thermoset | 90°C | Low (Stiff) | Very Low |
When comparing it to Ethylene Propylene Rubber (EPR), distinct operational trade-offs emerge. EPR offers excellent flexibility. Installers find it much easier to route through tight spaces or complex vault geometries. In contrast, our primary material remains inherently stiffer. Installers must exert more physical force and use larger pulling equipment to navigate sharp turns.
However, flexibility does not dictate high-voltage suitability. EPR exhibits higher dielectric loss. Crosslinked Polyethylene features significantly lower dielectric loss. This characteristic makes it strictly better for system voltages exceeding 69kV. Long-distance transmission magnifies dielectric losses. Over a 50-mile run, the efficiency gains of a low tan delta material become massive.
To simplify your decision matrix:
Choose EPR for medium-voltage networks requiring complex, tight routing.
Select standard PE strictly for low-voltage, low-stress environments.
Choose crosslinked materials for high-voltage, long-distance, and high-efficiency requirements.
Always prioritize dielectric efficiency over physical flexibility for extra-high-voltage bulk transmission lines.
Despite its robust nature, field installation carries specific risks. You must manage its inherent stiffness carefully. This rigidity requires strict adherence to minimum bending radius calculations. Over-bending causes microscopic voids to form within the insulation wall. These micro-voids eventually lead to partial discharge. Partial discharge accelerates material breakdown inevitably. Field crews must use proper sheaves and precise pulling tensions.
Here are several best practices for physical handling:
Always calculate the dynamic bending radius before starting the pull.
Use motorized assist rollers to distribute pulling tension evenly across the run.
Monitor ambient temperatures carefully. Cold weather increases material stiffness dramatically and raises the risk of jacket cracking.
Moisture poses another severe threat during the operational phase. When moisture combines with high electrical stress, it creates microscopic "trees" inside the polymer. This phenomenon is known as water treeing. It steadily degrades the insulation layer over years. To mitigate this risk, engineers specify Tree-Retardant variants (TR-XLPE) for wet environments. Alternatively, they ensure robust radial moisture barriers. They often deploy lead sheaths or aluminum laminates for underground and submarine installations. These metallic layers create a perfect hermetic seal against groundwater.
Jointing and splicing add another layer of complexity. Because it is a thermoset plastic, you cannot simply melt the ends back together. Jointers must use specialized, highly clean splicing techniques. Common methods include applying pre-molded joints or using vulcanized splicing tapes. Absolute cleanliness prevents localized electrical stress concentrations. Even tiny dust particles can compromise a high-voltage joint. Consequently, jointers often work inside climate-controlled splicing tents to maintain surgical levels of cleanliness.
Procurement leaders must evaluate vendors based on their underlying manufacturing technology. Not all crosslinking processes yield identical high-voltage performance. You must scrutinize the factory floor setup closely before awarding contracts.
Most tier-one manufacturers utilize Peroxide crosslinking via Catenary Continuous Vulcanization (CCV). This method remains the gold standard for high and extra-high-voltage applications. Gravity and controlled heat ensure uniform insulation thickness across the entire cable length. The catenary tube allows the molten polymer to cure while suspended in high-pressure nitrogen gas. This prevents physical deformation entirely. Historically, manufacturers used steam curing. However, steam introduced microscopic moisture. Today, dry curing inside the CCV line is absolutely mandatory for extra-high voltage.
Conversely, some vendors use irradiation crosslinking. This method works well for specialized, thinner-wall applications. However, you must verify its suitability meticulously if a vendor proposes it for HV infrastructure. It rarely achieves the required penetration depth for massive extra-high-voltage cables.
Demand rigorous, documented compliance from any prospective supplier. Look for strict adherence to recognized global standards. Key frameworks include IEC 60840 for systems above 30kV, AEIC CS9, or their IEEE equivalents. These standards provide a baseline for material purity and dimensional tolerances.
Furthermore, prioritize suppliers who provide transparent factory acceptance testing (FAT). You should request specific test results for partial discharge and impulse voltage withstand. A reputable manufacturer will readily share their continuous vulcanization logs and x-ray eccentricity measurements.
Here are common mistakes to avoid during the procurement phase:
Accepting irradiation methods for extra-high-voltage without deep technical review.
Ignoring the specific test environments used during FAT.
Failing to request cross-sectional uniformity reports from the CCV process.
Overlooking the purity grades of the base polymer resins used in the extrusion process.
This thermoset polymer is not a universal blanket solution for every electrical project. However, it serves as the definitive standard for high-voltage transmission. Where thermal stability and minimal dielectric loss are non-negotiable, it easily outperforms older alternatives.
To move forward effectively, engineers must transition from broad material evaluation to localized planning. First, calculate your required continuous and short-circuit current ratings accurately. Second, assess all environmental moisture risks along the proposed route. Finally, request detailed structural cross-sections from tier-one manufacturers. By following these steps, you ensure your infrastructure remains resilient, highly efficient, and compliant for decades to come.
A: These cables typically operate reliably for 40 to 50 years under standard conditions. Reaching this lifespan requires flawless installation. Installers must avoid over-bending and ensure pristine jointing to prevent partial discharge. Proper thermal management also extends the operational life significantly.
A: Water treeing occurs when moisture and high electrical stress create microscopic, tree-like fractures. These fractures degrade the insulation over time, eventually causing failure in wet environments. Engineers prevent this by specifying Tree-Retardant (TR-XLPE) compounds. Additionally, applying impermeable metallic sheaths blocks moisture ingress completely.
A: Because it is a thermoset plastic, traditional melting and reforming are impossible. The crosslinked molecular bonds do not unbind under heat. However, mechanical recycling remains viable. Facilities grind the material into fine powder to use as structural filler. Advanced chemical recycling methods are also emerging.
A: Modern thermoset polymers eliminate the need for complex, pressurized oil systems required by PILC cables. This drastically reduces maintenance efforts. Furthermore, they offer superior thermal ratings, enabling higher current capacities. Finally, replacing PILC removes the significant environmental hazards and cleanup risks associated with accidental oil leaks.
