Specifying medium-voltage cables remains an exceptionally high-stakes engineering decision. A single unpredicted failure quickly leads to catastrophic power outages, severe safety hazards, and complex replacement operations. Mitigating internal electrical stress and preventing partial discharge relies entirely on the precise application of specialized semi-conductive layers. If you ignore these invisible boundaries, localized high-voltage fields will rapidly degrade the primary dielectric barrier.
This comprehensive guide breaks down the exact mechanical and electrical differences between conductor and insulation shields. We will help system engineers and procurement teams evaluate the right Shielding Material to guarantee long-term operational reliability. You will learn how formulation choices impact field confinement, thermal stability, and ultimate infrastructure safety.
Medium-voltage infrastructure carries immense power loads across vital networks. We must understand the underlying physics of failure to appreciate the role of semi-conductive layers. Stranded metallic conductors do not possess perfectly round surfaces. Instead, they feature microscopic peaks, valleys, and crevices. These physical irregularities create highly concentrated, uneven electrical fields.
Electricity naturally concentrates at sharp points. Without intervention, these localized stress points easily ionize tiny air pockets trapped near the wire. This rapid ionization causes partial discharge. Over time, partial discharge slowly eats away the surrounding polymer. It attacks the insulation on a molecular level. Eventually, the dielectric barrier fails entirely, triggering a massive electrical short.
Defining a successful medium-voltage cable specification requires intense focus on prevention. You must evaluate a shielding polymer capable of permanent adhesion. It must stick flawlessly to the primary insulation layer without leaving microscopic gaps. It must also survive extreme thermal cycling and intense load variances. Every time current spikes, the cable heats up and expands. The semi-conductive layers must expand at the exact same rate as the surrounding plastics.
Proper shielding represents more than a simple performance upgrade. It stands as a strict, non-negotiable baseline requirement. Global frameworks like IEEE and NEC mandate these protective layers. They ensure critical infrastructure safety and protect human lives. When you choose the correct formulation, you physically prevent microscopic air gaps. This singular decision protects grid reliability for decades.

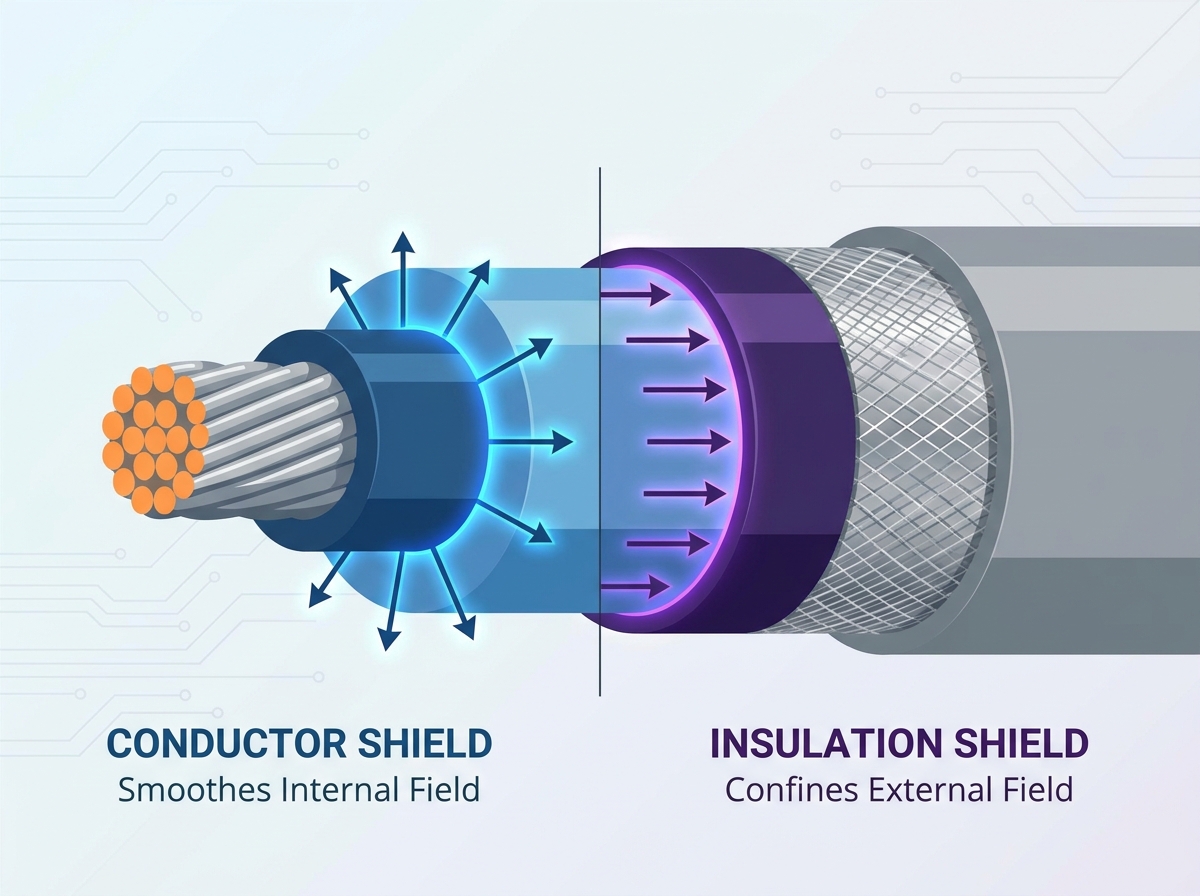

Manufacturers extrude the conductor shield directly over the bare metallic wire. It acts as the innermost semi-conductive layer of the cable. We often describe its core mechanical function as a Faraday cage. It completely masks the chaotic electrical field generated by the twisted wire strands. It absorbs those sharp voltage spikes entirely.
After absorbing the irregular energy, the shield presents a perfectly smooth, uniform surface outward. This uniform boundary contacts the primary insulation directly. The primary dielectric layer only "feels" a perfectly smooth electrical field. This completely eliminates localized stress concentrations at the center of the cable.
When evaluating material specifications, you must prioritize two specific dimensions. First, demand exceptionally low volume resistivity. The compound must conduct electricity just enough to equalize the voltage. Second, require an ultra-smooth extrusion profile. Any microscopic bumps or lumps in the extruded layer will defeat the shield's core purpose. They simply create new stress concentration points against the insulation.
Industry benchmarks offer clear guidance for procurement teams. Consider advanced formulations like ZC-4111 Conductor Shielding Material. Engineers rely on it as a proven specification standard. Its highly specialized formulation ensures continuous electrical contact under all operating conditions. It actively prevents microscopic voids from forming at the critical conductor-insulation interface. By eliminating these dangerous air gaps, the compound guarantees a stable internal electrical environment.
The insulation shield sits on the opposite side of the dielectric barrier. Factories extrude it directly over the primary insulation layer. You will find it just beneath the external metallic shield or copper neutral wires. While the inner shield manages the center, the outer shield manages the perimeter.
Its core mechanism perfectly complements the inner conductor shield. It confines the entire voltage stress strictly within the insulation layer. Because of this outer boundary, the electrical field drops to absolute zero. It reaches zero exactly at the outer edge of the semi-conductive layer. This dramatic drop protects field personnel who handle the cables. It also protects surrounding sensitive equipment from induced voltages.
Grounding realities require careful engineering attention. The insulation shield must maintain continuous, intimate contact with the overlying metallic shield. It physically touches the overlapping copper tape or wires. This direct contact safely carries capacitive charging currents away from the system. It also channels dangerous fault currents directly to the ground during an emergency.
Choosing the right external compound involves significant engineering trade-offs. Many high-reliability applications specify ZC-4212 Non-Strippable Insulation Shielding Material. Non-strippable compounds provide a vastly superior, void-free bond. This intense adhesion drastically reduces discharge risks. It performs exceptionally well in high-stress utility environments. However, contractors must use specific mechanical shaving tools during termination. The enhanced safety margin easily justifies this extra labor step.
Decision-makers need a clear evaluation framework. You must deeply understand how these two layers differ in function and formulation. We can compare them across three core specification dimensions to guide your sourcing strategy.
| Specification Dimension | Conductor Shield (Inner Layer) | Insulation Shield (Outer Layer) |
|---|---|---|
| Positional Placement | Extruded directly over the metallic conductor | Extruded directly over the primary insulation |
| Primary Electrical Objective | Smooth uneven electrical stress points | Confine voltage stress to zero at the cable edge |
| Adhesion Priority | Permanent, unbreakable thermal fusion | Controlled adhesion (strippable or non-strippable) |
| Failure Consequence | Internal partial discharge at the core | External surface tracking and severe shock hazard |
Material chemistry directly determines long-term infrastructure reliability. We must explain why crosslinking remains the definitive industry standard today. Engineers use it strictly for bottom-of-funnel evaluations. Basic thermoplastic materials carry extreme structural risks. They easily melt under severe electrical overload conditions. Conversely, crosslinked polymers hold their dimensional shape permanently. They resist melting completely, even during massive power surges.
You achieve outstanding performance outcomes using advanced chemical bonds. Specifying a true Peroxide Crosslinking Semi-conductive Shielding Material guarantees superior thermal stability. It delivers exceptional creep resistance under heavy physical loads. Crucially, it shares an identical thermal expansion rate with standard XLPE insulation. The shield and the insulation expand and contract together perfectly. This synchronized physical movement prevents microscopic tearing.
Manufacturing extrusion risks still exist despite good chemistry. Factory extrusion lines face the constant threat of "scorch." Scorch means premature crosslinking occurs inside the hot extruder head before the plastic coats the wire. It leaves hard, localized lumps in the final shield layer. Evaluating and selecting high-quality, scorch-resistant compounds mitigates this risk entirely. It prevents costly production line failures. It also ensures zero hidden defects exist inside the finished cable.
Even the most perfectly engineered cable remains vulnerable in the field. It can easily fail due to poor manual installation techniques. Contractors face difficult, unforgiving realities when splicing and terminating underground lines. The initial choice between strippable and non-strippable outer shields changes their workflow completely.
Procurement teams need clear shortlisting logic before buying. You should align your material choice directly with field realities. Assess your installation crew's actual tooling capabilities. Evaluate the project's long-term environmental stress factors objectively. Do not compromise systemic integrity just to save a few hours of installation labor.
Proper specification demands rigorous attention to both inner and outer semi-conductive layers. System integrity relies entirely on balancing these precise physical and electrical properties.
A: Above 2kV, industry standards strictly require shielding. Unshielded designs suffer from unchecked electrical stress. The dielectric field interacts unpredictably with surrounding grounded surfaces. This aggressive interaction rapidly degrades the primary insulation through corona discharge. Therefore, you must use an outer semi-conductive layer to confine the voltage and prevent catastrophic failures.
A: Non-strippable shields offer superior, unbreakable adhesion to the primary insulation. This tight, fused bond entirely eliminates microscopic air voids at the interface. In critical utility or high-stress environments, this guarantees minimal partial discharge. While it requires specialized shaving tools during termination, the enhanced long-term reliability heavily outweighs the initial labor burden.
A: Peroxide crosslinking alters the polymer's molecular structure, creating a highly stable thermal memory. During severe current overloads, the material resists heat deformation and refuses to melt. It maintains its exact physical shape and shares an identical thermal expansion rate with the XLPE insulation. This prevents mechanical stress and dramatically extends operational longevity.
